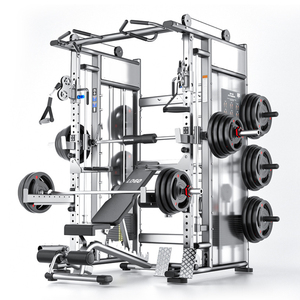

Commercial Multifunction Fitness Cable Crossover Squat Power Rack
- Dual Cable Stack & Smith Unit
- Heavy 3mm Frame Tube
Factory-direct structural fitness equipment engineered with 3mm mild-steel profiles, robotic MIG welding, and electrostatic powder coating.
In modern commercial fitness facility fit-outs, functional rigging systems are no longer passive steel frames—they represent the structural backbone of high-intensity training zones. Operating under continuous dynamic loads from suspended gymnastic rings, aerial hammocks, cable crossover pulleys, and heavy Olympic barbell drops, gym rigging must be manufactured under strict metallurgical, biomechanical, and structural engineering protocols.
Our OEM manufacturing facility in Jaipur, India, engineers strength training rigs utilizing cold-rolled structural steel sections in 50 x 100 mm and 75 x 75 mm profiles. The structural load pathway is validated through Finite Element Analysis (FEA) software before steel cutting, ensuring every stress joint delivers a minimum 4:1 safety factor against ultimate yield strength.
| Engineering Metric | Standard Commercial Rigs | CE Certified BODYTEC Rigging Standard |
|---|---|---|
| Steel Tube Gauge | 1.5 mm – 2.0 mm (14–12 Gauge) | 2.5 mm – 3.0 mm (11 Gauge Structural Steel) |
| Welding Integrity | Manual TIG / Spot Tack Weld | Robot-Assisted Continuous MIG Pulse Welding (ISO 3834) |
| Coating Technology | Single-Coat Wet Paint (80 µm) | Dual-Stage Electrostatic Powder Coat (180–200 µm) |
| Corrosion Resistance | 120-Hour Salt Spray Testing | 1,000-Hour ASTM B117 Salt Spray Tested (Zinc Primed) |
| Hardware Specification | Grade 4.8 Standard Fasteners | Grade 8.8 / 10.9 High-Tensile Structural Bolts |

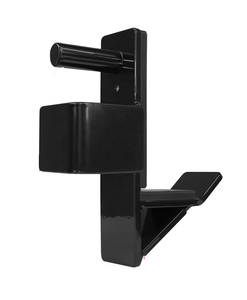

| Attachment Protection | Bare Steel / Rubber Strips | Precision Laser-Cut UHMW Liners on J-Hooks & Spotters |
By enforcing precise laser-tube cutting with tolerances under 0.1 mm, upright holes align perfectly across multi-bay configurations. This eliminates frame warping during full-container dispatch and streamlines site assembly for commercial gym owners, hotel wellness hubs, and institutional park deployments worldwide.
Why premier gym chains, global equipment distributors, and OEM private-label brands partner directly with our manufacturing hub.
Operating from our integrated industrial facility in Jaipur, Rajasthan, every stage—from CAD drawing review, raw steel profiling, robotic welding, shot-blasting, and powder coating to pre-dispatch load assembly—occurs under one dedicated engineering management team.
We provide full turn-key private label services: custom powder-coat RAL color matching, laser-cut logo brand badges, custom upholstery stitching, printed instruction placards, and barcode-labeled export cartons tailored for international brand catalogues.
We export to the Middle East, Africa, CIS, Southeast Asia, Europe, and Latin America. Orders are optimized for 20ft, 40ft, and 40ft HQ container volumes with knock-down export packing, fumigated wooden crating, and complete shipping documentation.
Built to survive high-volume 12–18 hour daily duty cycles. Every commercial rig frame is backed by lifetime structural weld guarantees, verified spare-parts continuity (pulleys, bearings, pads, cables), and detailed installation blueprints.
Key evolutionary vectors shaping commercial fitness infrastructure investments over the next decade.
Commercial gym operators are moving away from single-purpose machines toward space-efficient, multi-use functional rigging matrices. Rigs that seamlessly integrate power rack stations, cable crossovers, monkey bars, aerial hammock anchors, and bungee fitness attachments yield higher revenue per square foot of floor space.
Municipalities, resort chains, and residential developments are heavily investing in outdoor open-air fitness parks. Sourcing managers now mandate dual-substrate weatherproofing: hot-dip zinc galvanization combined with UV-stabilized architectural powder coating to withstand coastal saltwater and high-humidity climates.
Modern equipment distributors require modular frame standards where accessories—such as J-hooks, dip bars, landmines, wall-ball targets, and safety spotter arms—can be added or reconfigured without structural drilling, using standardized 21mm laser-cut holes and magnetic safety pins.
To guarantee that equipment dispatched across ocean freight routes arrives in pristine condition and fits perfectly on site, our factory adheres to a strict 4-stage quality control protocol:
Every custom rig configuration undergoes 3D structural model clearance and FEA load simulation prior to production release.
Steel tubing is cut, notched, and perforated on CNC fiber lasers to ensure exact 0.1mm dimensional alignment.
Frames undergo shot-blasting, phosphate anti-rust treatment, electrostatic powder application, and 200°C oven curing.
Units undergo mock assembly testing, bubble-wrap/corrugated padding, and fumigated crating with photo-documented loading.
Technical and commercial answers for facility owners, importers, and project engineers.
Whether you are planning a commercial gym fit-out, expanding a distributor catalogue, or launching an OEM fitness equipment line, our engineering team is ready to assist with CAD layouts, load specs, and factory direct quotations.
